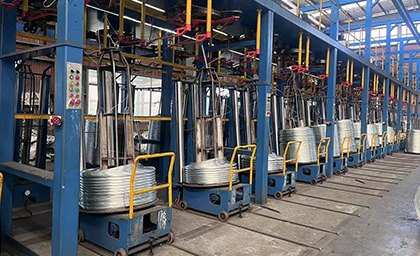

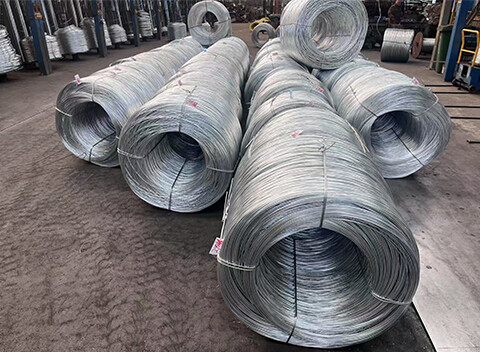

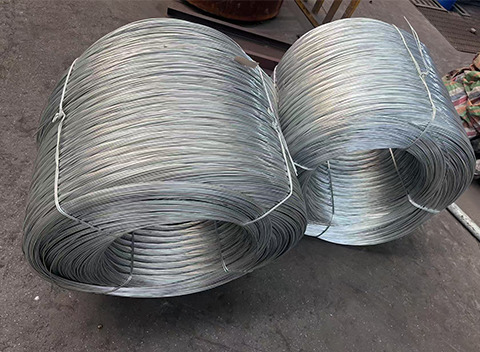

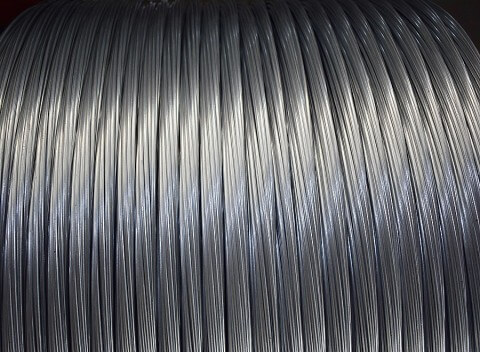

-Made from high-quality low-carbon steel wire rods, galvanized through hot-dip or electroplating processes to form a uniform zinc coating on the surface, effectively preventing corrosion.

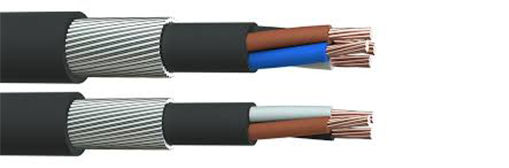

-Primarily used as the armoring layer in armored cables.

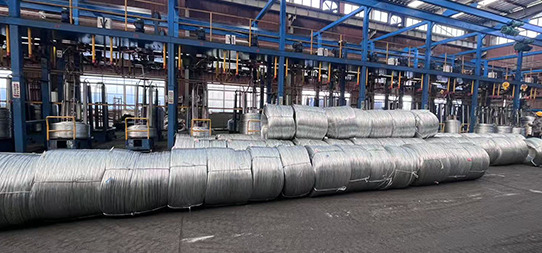

-Annual production capacity of 50,000 tons, supporting customized requirements for different customers.
Technical Parameters
| Wire Diameter | Diameter Tolerance | Tensile Strength | Elongation at fracture | Torsion Test | Min Mass of zinc coating | Max DC resistance @20 ℃ | |
| mm | mm | N/mm² | % | Gauge length(mm) | Min no. of turns to fracture | g/m² | Ω/km |
| 0.90 | +/-0.035 | 340 to 500 | 7.5 | 75 | 33 | 155 | 216.92 |
| 1.25 | +/-0.040 | 340 to 500 | 10 | 75 | 24 | 180 | 112.45 |
| 1.60 | +/-0.045 | 340 to 500 | 10 | 150 | 37 | 195 | 68.64 |
| 2.00 | +/-0.050 | 340 to 500 | 10 | 150 | 30 | 215 | 43.93 |
| 2.50 | +/-0.060 | 340 to 500 | 10 | 150 | 24 | 245 | 28.11 |
| 3.15 | +/-0.070 | 340 to 500 | 10 | 150 | 19 | 255 | 17.71 |
Reference Standards: BS EN 10257-1 & BS EN 10244-2 or customized products available.
Raw Materials: Steel: Our raw material is high-quality low-carbon steel wire, with chemical composition conforming to GB/T 700-2006 standard.
Zinc: 99.995% pure zinc is used as the coating material.
-The zinc coating shall be uniform and continuous, with no cracks or exposed areas.
-No joints, zinc lumps, corrosion spots, or scratches shall be permitted on any coil of steel wire.
-Used as the armoring layer in armored cables for various industries, including:
-Power transmission and distribution
-Onshore and offshore wind power
-Offshore power supply and marine power transmission
-Solar and photovoltaic power generation
-Mining and tunnel engineering
-Nuclear energy sector
-Oil and gas industry
-Petrochemical industry
-Telecommunication and data transmission
-Aerospace
-Automotive manufacturing
-Railways and tram systems
-Cableway systems
-Shipbuilding
-National defense and military applications
