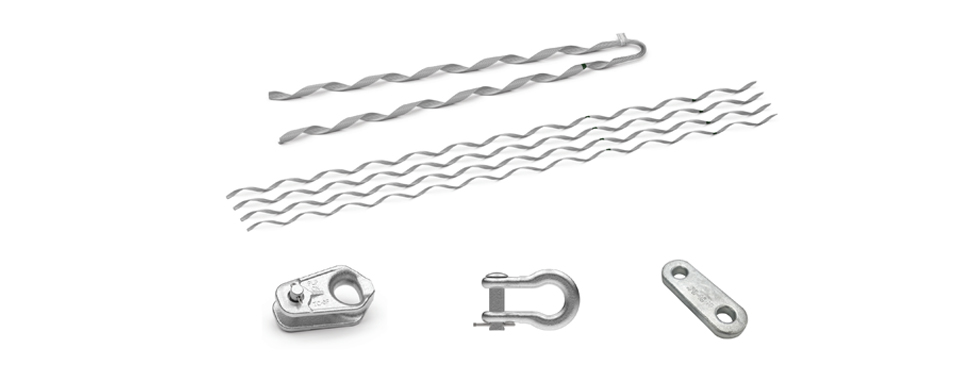

-The complete preformed tension clamp set for OPGW cables includes: outer preformed wire, inner preformed wire, matching hardware fittings, and a grounding wire.

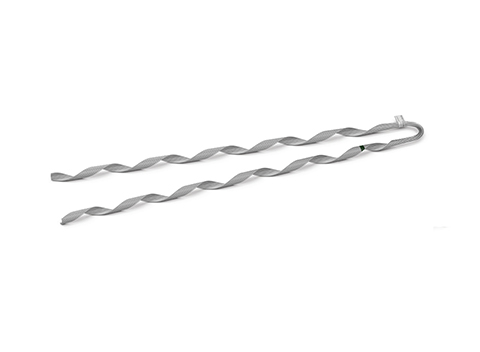

-Guy Grip Dead End is made of aluminum-clad steel wire or galvanized steel wire, providing excellent mechanical and electrical performance with strong resistance to electrochemical corrosion and fatigue.
-Customized designs are available upon request.
Preformed Tension Clamp for OPGW
Reinforced Double Clamp for OPGW
| TYPE | Available Dia.of cable (mm) | Length of helical wire (mm) | Ref. Weight (kg) | Devastating strength (kN) | ||
| MIN. | MAX. | Inner | Outer | |||
| HM-NJO 0880/70 | 7.9 | 8.8 | 1400 | 1000 | 1.2 | 70 |
| HM-NJO 1010/70 | 8.9 | 10.1 | 1400 | 1000 | 1.3 | 70 |
| HM-NJO 1140/90 | 10.2 | 11.4 | 1540 | 1120 | 1.7 | 90 |
| HM-NJO 1280/110 | 11.5 | 12.8 | 1620 | 1200 | 2.4 | 110 |
| HM-NJO 1410/110 | 12.9 | 14.1 | 1660 | 1240 | 2.6 | 110 |
| HM-NJO 1500/110 | 14.2 | 15.5 | 1840 | 1360 | 2.9 | 110 |
| HM-NJO 1730/110 | 15.6 | 17.3 | 2000 | 1480 | 3.6 | 110 |
| HM-NJO 1920/120 | 17.4 | 19.2 | 2400 | 1800 | 4.7 | 120 |
| HM-NJO 2110/120 | 19.3 | 21.1 | 2600 | 2000 | 5.2 | 120 |
Standards: DL/T 757, DL/T 763.

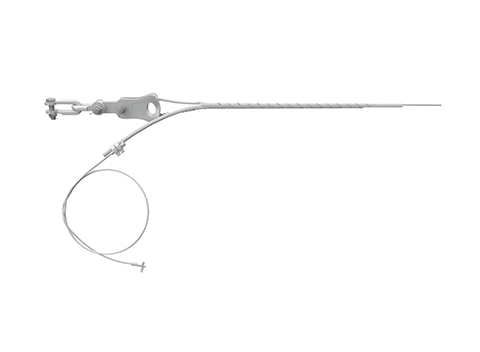

Assembly Drawing of Preformed Tension Clamp for OPGW.
| TYPE | Length of Structural Reinforcing Rods | Length of Middle Dead-End | Length of Outer Dead-End | Reference Weight | Breaking Strength |
| - | (mm) | (mm) | (mm) | (kg) | (kN) |
| HM-NJDI 160 | 2400 | 1800 | 1600 | 14.5 | 160 |
| HM-NJDI 210 | 2800 | 2200 | 2000 | 20.3 | 210 |
| HM-NJDI 250 | 3100 | 2400 | 2200 | 26.5 | 250 |
| HM-NJDI 320 | 3200 | 2600 | 2400 | 33.1 | 320 |
Standards: DL/T 757, DL/T 763.
Customized products available.
Assembly Drawing of Reinforced Double Preformed Tension Clamp.
-Allows easy, convenient, and quick installation without the need for special tools; installation can be completed by a single person, significantly reducing construction time and cost.
-Installation quality can be visually inspected on-site without the need for special training or tools.

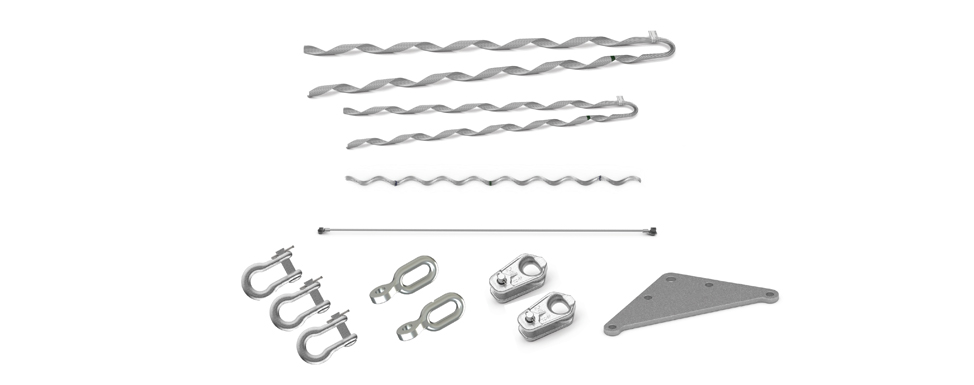

-The complete set includes outer and inner preformed wires, matching hardware fittings, grounding wires, and more.
-Reinforced double preformed tension clamps adopt a three-layer structure—comprising inner, middle, and outer preformed wires—which significantly enhances tensile strength and allows installation at any line angle without restriction.
-Guy Grip Dead End are mainly used for installing OPGW cables on tension towers, angle towers, and terminal towers.
-Guy Grip Dead End is used as the fixed ends of overhead transmission lines and OPGW cables.
-Bearing line tension at terminals or line angles.
